AutomatisierungsTechnik Voigt GmbH

Unsere Messe Highlights auf der PCIM 2018

WE CONNECT HV SMU TO YOUR TEST SETUP

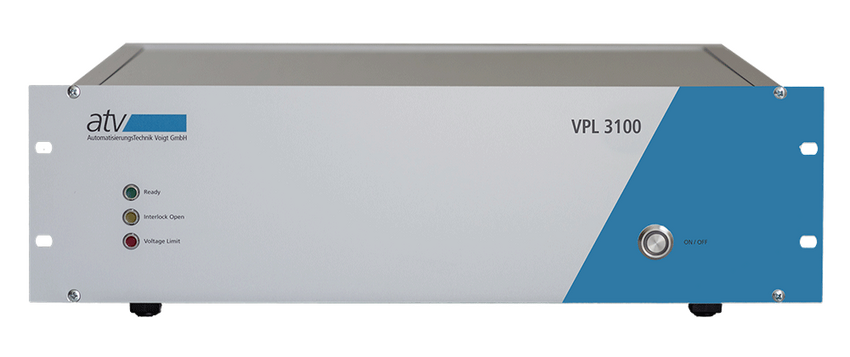

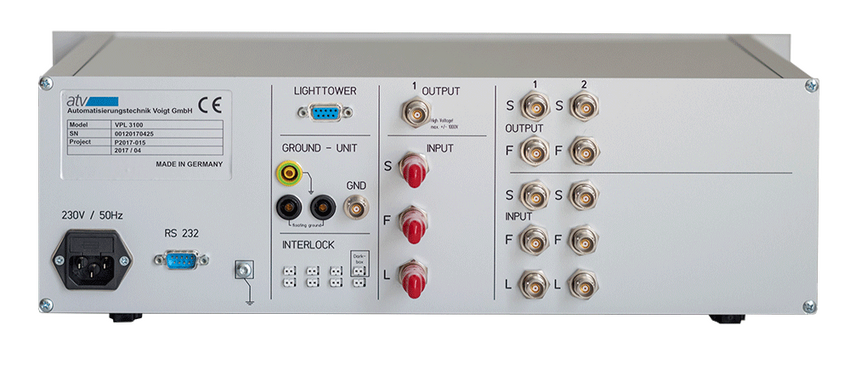

VPL 3100 - High voltage protection & limiter unit

  • Safe limitation to 1.1 kV
  • Inputs for up to two 3 kV Keithley SMU
  • Overvoltage protection for 200 V SMU
  • Adaptation from Keithley high voltage cables (3 kV) to standard HV-triax (1 kV)
  • Keithley TSP (Test Script Processor) driver

weiterlesen...

WE COMBINE 100 A AND 3000 V IN ONE SETUP

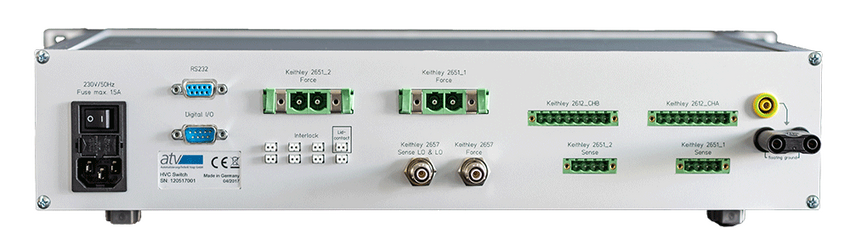

HVC Switch - Power curve tracer

  • For Keithley HC- and HV-SMU
  • Built-in high voltage protection for gate control
  • HV triax for leakage measurement
  • Package- and wafer-level
  • Controlled HV & HC mode selection

Weiterlesen...

WE ENABLE 1000 W ON WAFER LEVEL

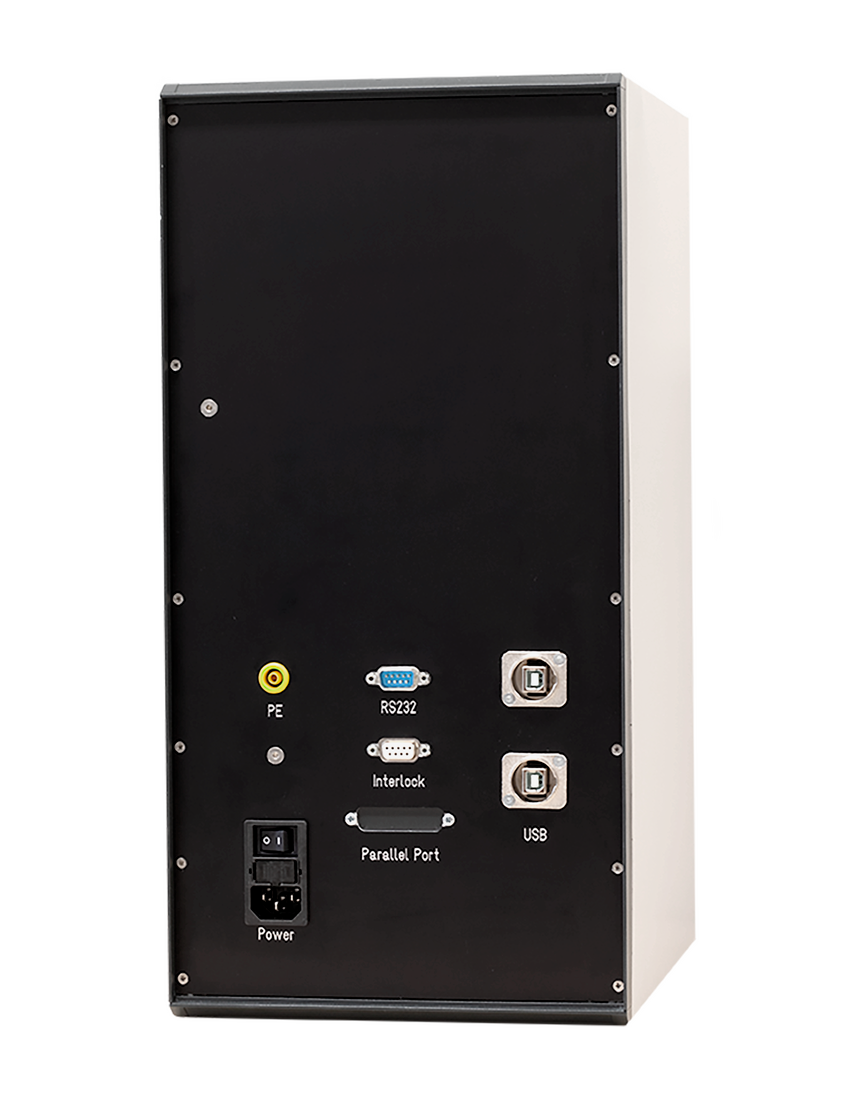

PIV 1002 - for characterisation of high-voltage MOSFET

  • Pulse width: 250 ns - 5 ms
  • 2-4 terminal devices
  • IC-CAP modeling driver
  • Reliability test / pulsed hot carrier test
  • Overcurrent protection (probe tip protection

Weiterlesen...

WE PROVIDE ULTRA FAST DYNAMIC RDS(ON) TEST

Characterisation system for GaN-devices

  • Off-state 1 kV
  • On-state 120 A
  • 100 ns sampling time resolution
  • Integrated wafer test solution

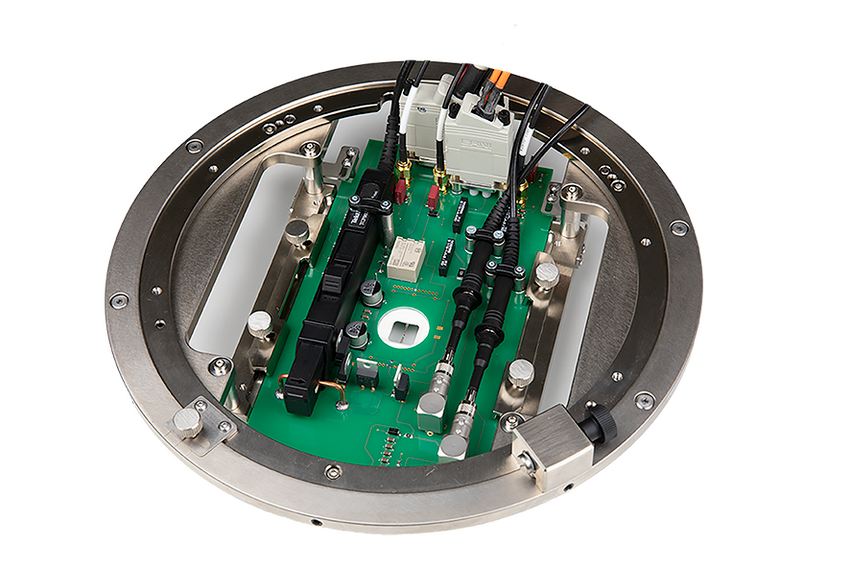

  • Active probe card

Weiterlesen...
