Curve Tracer

Software enhancement to record and write diode and transistor characteristics

Recording diode and transistor characteristics is a standard job in measurement technology. Curve Tracer is a software extension with which TCP/IP capable devices of the 26XX series of KEITHLEY Instruments can be expanded to a curve tracer. The extension is a software module based on the Lua Script Editors of the ATV GmbH. It does not require expensive special hardware.

Depending on the device type, measurement is performed on one or two channels. Optional use of a type DMM2000 digital multimeter connected via RS232 is possible. Two freely definable math channels allow simple set-off of measuring results.

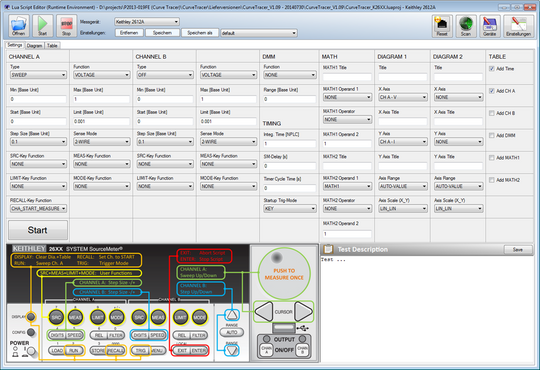

The data is displayed on the PC in tabular form as well as in diagrams. For further processing they can be saved in CSV format.

Easy Trace includes a license for the Lua Script Editor.
