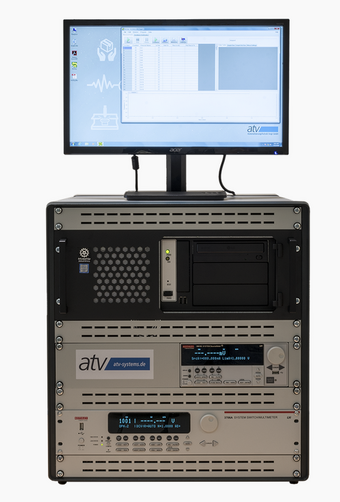

ResLog - Test system for current-carrying capacity and reliability tests
Measuring system for performing tests according to recommendations of the Association of the PCB Industry (VdL)
- Measuring sequence according to VdL/ZVEI recommendation
- Measurement/waiting times and currents adjustable
- Own temperature measurement with PT100, therefore independent of heating chamber model
- Measurement during stress test for faster visualization of aging processes
- 120 oder 180 Kanäle
- Maximum current: 3 A (RESLOG 120), 2 A (RESLOG 180)
- Current accuracy @max: 0.05 % + 3.5 mA
- Number of channels: 20 (RESLOG 120), 2A (RESLOG 180)
- Maximum voltage range: 6 V
Life cycle tests are indispensable for a high-quality product. The Association of the Printed Circuit Board Industry has developed a temperature cycling test for this purpose, which can be used to test the cycling capability of printed circuit board material. With the help of the measured change in resistance, a qualitative statement can be made about any defects that may be present due to aging in conductor track structures. This measuring system was developed to perform tests according to the recommendations of the VdL.
